Product Description



SUMMARY


Working based on existing GSM/GPRS/WCDMA/LTE network and GPS satellites, this product can locate and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual positioning.





Content

Specs.

Dim.

TK209A/B/C    115*65*25mm/120*65*35mm/120*65*50mm

Weight

TK209A/B/C   192g/290g/444g (4G version)

Frequency

North America Version: LTE B2/B4/B12 etc;WCDMA :B2/B5

Euro Version:LTE-B1 B3 B5 B7 B8 B20 etc;

WCDMA:B1 B2 B5 B8 ;GSM: 850/900/1800/1900MHZ

South American version: LTE- B1 B3 B5 B8 etc;

WCDMA:B1 B8 ;GSM:900/1800MHZ

GPS chip

UB-7

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  35-80s

Warm status  35s

 Hot status  1s

Car charger

12—24V  input

      5V   output

Wall charger

110-220V  input

       5V   output

Battery

Chargeable changeable 3.7V 5000/10000/20000 mAh Li-ion battery

Standby

30 days / 60 days / 90 days

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing

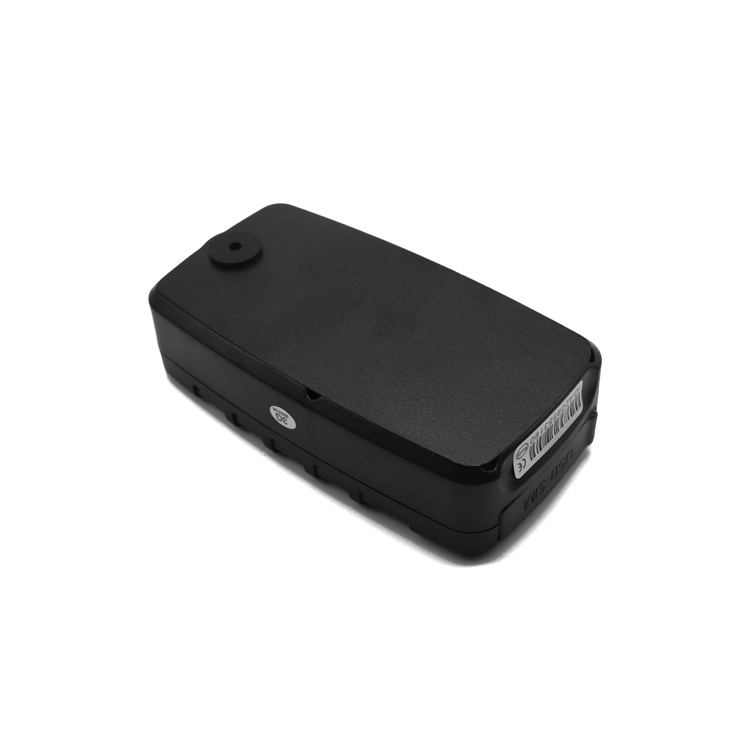

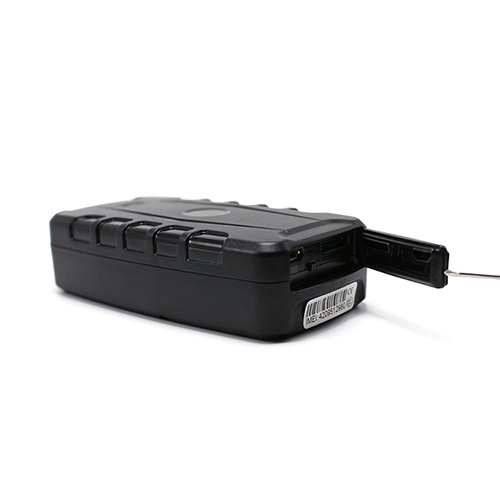

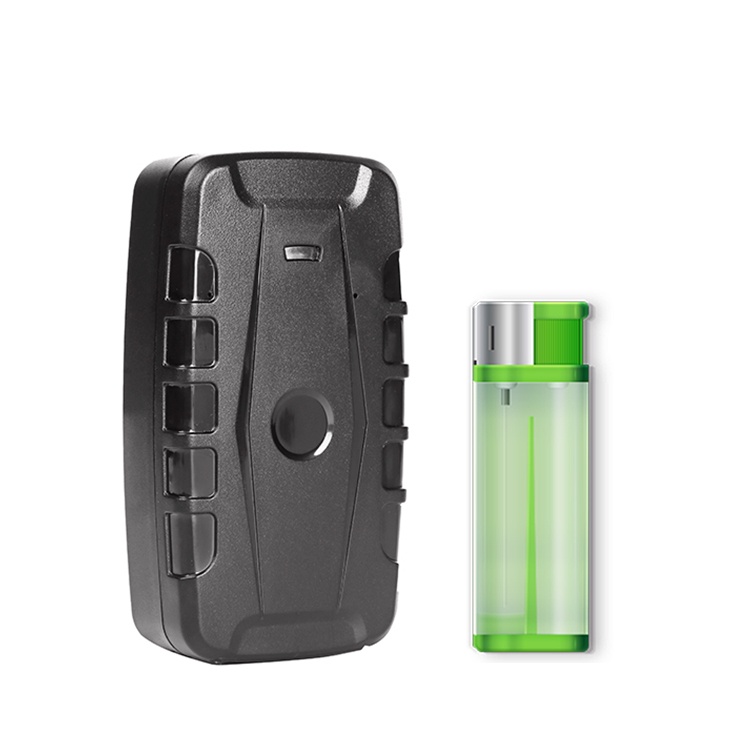

209 ABC product display1.jpg



209 product display 3.jpg

209 product display 5.jpg209 product display 6.jpg










Platform & APP



Select “Log in by IMEI/ID” on the bottom of screen

ID No. : on the back side of cover

Password: 123456



4PlatformAPP 2.png



Search “XETRACK“ in the Apple App Store/Google Play Store .

Select “Login BDevice ID” on the bottom of screen

Device ID : on the back side of cover

Password: 123456



4PlatformAPP 3.png

Packaging & Shipping

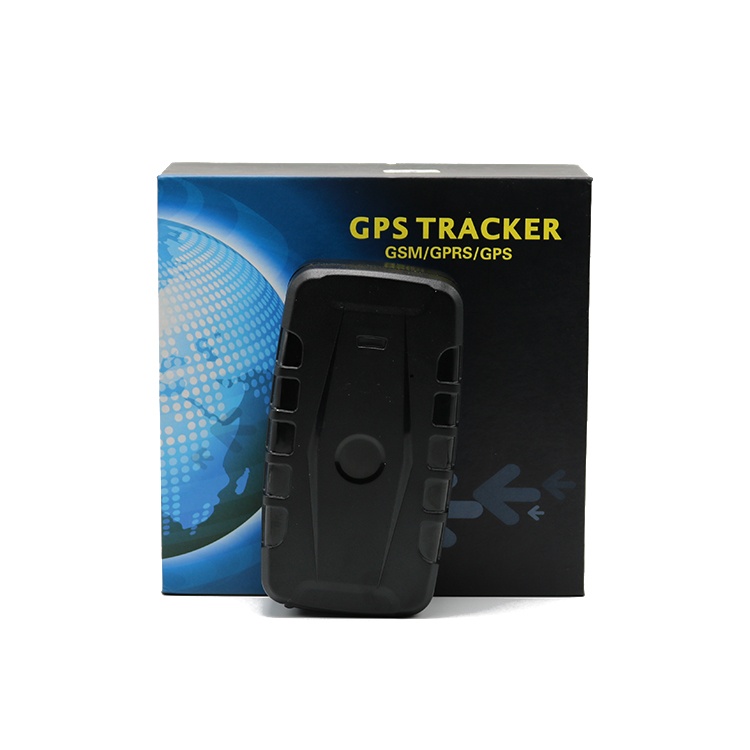

209B PACKING Shipping.jpg

Company Information




FAQ

1. Do you support OEM and ODM service?
Yes, we are professional GPS tracker manufacture since 2012, we offer bothe OEM and ODM service.


2. Can I check all my trackerdevices same time on the platform?
Yes, you can check all your trackers same time one the platfom.


3. Can you do software customization?
Yes, we can help to develp customized software.


4. Do I need to pay for the platform ?
No, we offer life free Web Platform and Phone APP.


5. Do you offer Blind Drop-shipping ?
Sure, we can offer Blind Drop-shipping cost to every of your request.


6. How many languages will it support for countries or cities?
Our APP support 15 languages and we can add any language to your request.


7. What's your delivery date?
For samples we can delivery within 1-7 days, mess production need to be negotiate.


8. How your factory control the quality? What's your warranty?
Each production process with QC, all the raw material we purchased are certifcated and all our tracker wiht CE, FCC & RoHs certification. The warranty period is 12 months.


9. Did the tracker need to have a SIM card? Where can I get the SIM card?
Yes, all the GPS tracker need to work with SIM card so can realize real-time tracking. You can buy and use your local SIM card.
